GW50 Solid Rebar Locator Tester

GW50 Solid Rebar Locator Tester also known as cover meter. This is a large-scale rebar locator with investigation depth up to180mm.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of GW50 Solid Rebar Locator Tester

GW50 Solid Rebar Locator Tester also known as cover meter. This is a large-scale rebar locator with investigation depth up to180mm.

Features of GW50 Solid Rebar Locator Tester

Single comprehensive probe. No need to replace during test.

back-lit screen let instrument can be normal used under the condition of insufficient light

GW50 Solid Rebar Locator Tester software is complete.

The cover meter test report could be printed automatically connecting with computer

Work environment condition of GW50 Solid Rebar Locator Tester

No strong alternating electromagnetic field

No corrosive gas in the air.

Avoid larger vibration and impact

Avoid the LCD panel contact with sunlight directly

Parameter of GW50 Solid Rebar Locator Tester

Rebar diameter range(mm) :Φ6-Φ50

Maximum error of cover thickness +/- 1

Cover thickness range(mm)

First range(mm) 6-90

Second range(mm) 7-180

Maximum error of cover thickness

First range(mm) Second range(mm)

60-59 7-79 +/- 1

60-69 80-119 +/- 2

70-90 120-180 +/- 4

Environmental requirement

Working temperature°C -10~40°C

Relative humudity <90%

Power source Alkaline cellX6, >30 hours

Accessories of GW50 Solid Rebar Locator Tester

1. software disc

2. manual

3. approval certificate

4. baldric

5. suitcase

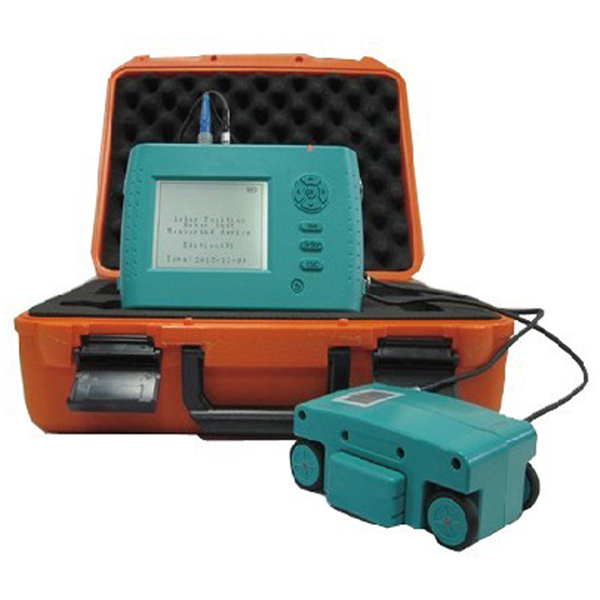

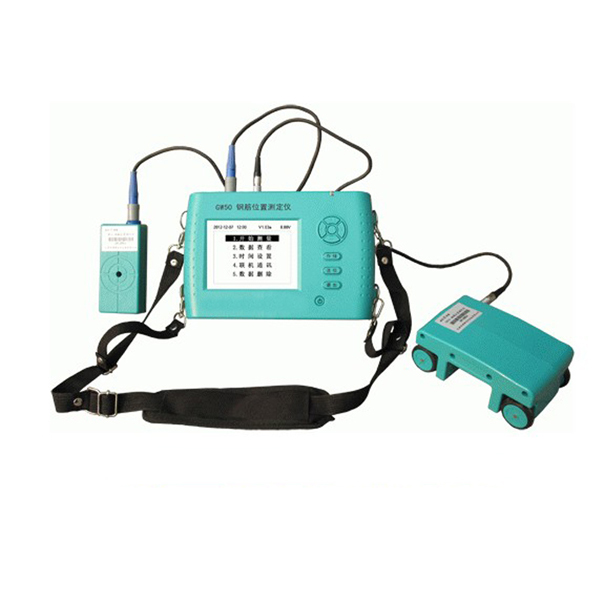

Pictures of GW50 Solid Rebar Locator Tester
