R51 Wall Concrete Rebar Detector

R51 Wall Concrete Rebar Detector used to test steel-bar diameter, Distribution, backing thickness in concrete.

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of R51 Wall Concrete Rebar Detector

R51 Wall Concrete Rebar Detector used to test steel-bar diameter, Distribution, backing thickness in concrete.

Performance of R51 Wall Concrete Rebar Detector

1. Longer service life of the connector clip. The instrument has long service life because of using lemo connector clip which  comes form Switzerland  and used for aircraft industry.

2. Good quality of signal cable. The signal cable has long service life because of its flexible and substance .

3. High precision and stability. The instrument can locate the steel-bar accurately and quickly.

4. Longer service life of the sensor. Improve the service life by paste abrasion resistance allowance on the bottom of the sensor.

5. Single sensor test. Do not need to change the sensor during the test. it can assure the precision of test data and the test  depth that switching between the low and high test range.

6. Real-time Display  test information. Interpret and display the test data Intelligently to avoid man-made errors.

7. Powerful data process and analysis software in windows. Test data can be export to word or excel easily.

Parameter of R51 Wall Concrete Rebar Detector

Applicable steel-bar diameter

6mm~50mm

Tested range of concrete backing thickness

Low range: 6mm~90mm; High range:7mm~190mm.

Maximum permissible errors of concrete cover thickness


Low range

High range

±1

6~59

7~79

±2

60~69

80~119

±4

70~90

120~190

Tested range of steel-bar diameter

6mm~50mm

Permissible error of steel-bar diameter test

±1 grade

Applicable environmental

temperature: -10℃~+40℃; Dampness: <90%RH

EMI: no Strong electromagnetic field

Power supply

6 dry cells, work more than 30 hours

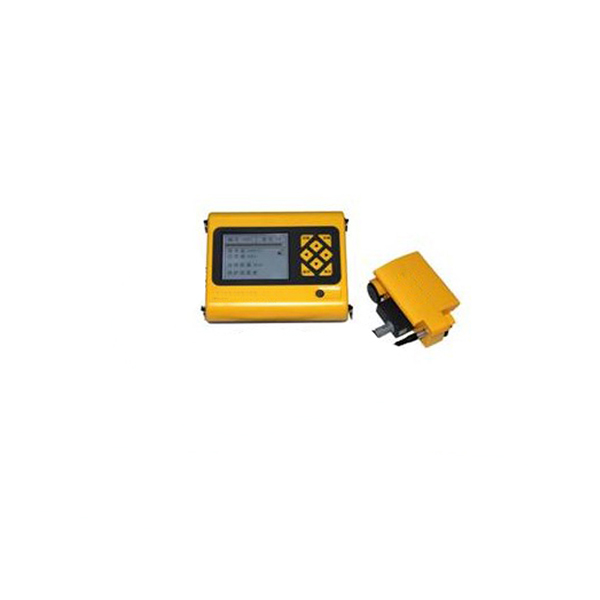

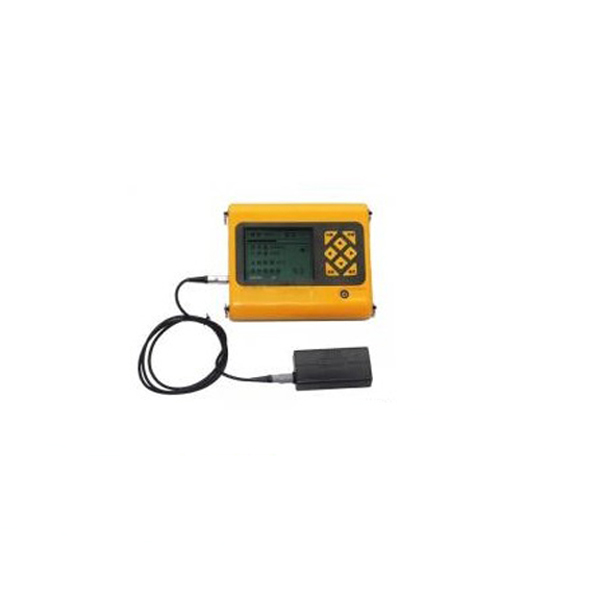

Pictures of R51 Wall Concrete Rebar Detector
