PQWT-TC500 500 Meters Deep Underground Water Exploration Locator

PQWT-TC500 500 Meters Deep Underground Water Exploration Locator can complete more than 8000 meters profile measurement in one day to realize geological abnormality in different depth, the prospecting

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of PQWT-TC500 500 Meters Deep Underground Water Exploration Locator

1.High Measurement Speed and high efficiency

PQWT-TC500 500 Meters Deep Underground Water Exploration Locator can complete more than 8000 meters profile measurement in one day to realize geological abnormality in different depth, the prospecting speed and efficiency is improved about 10 times more than traditional resistivity method.

2.Convenient to Carry

Without heavy power supply, it uses low frequency signals in earth natural electric field as signal source, and the complete set weight is less than 2kgs so easy to carry.

3.Simple operation

PQWT-TC500 500 Meters Deep Underground Water Exploration Locator Equipment is automatically controlled by micro PC. You can learn its operation in 10 minutes. It will take 10 minutes for persons without prospecting experience to finish training.

4.Good performance and high Accuracy.

The resolution of measurement is up to 0.001mV, and precision is ±2%. It gains high stability and abnormity curves matching with that of traditional

geo-electrical equipment in lots of field survey.

5.Strong Anti-Interference Ability

PQWT-TC500 500 Meters Deep Underground Water Exploration Locator has advanced anti-jamming technology and multiple anti-jamming designs. You can observe abnormity curves result with good repetition even in weak signal area, city, high electric jamming area and working area with other exterior interference via frequency selector and digital processing.

6.The unique feature of Automatic mapping

This PQWT-TC500 500 Meters Deep Underground Water Exploration Locator instrument can automatically form curve graph and profile map with one button after completed recording data, no need transfer the data to computer for drawing mapping.

Parameter of PQWT-TC500 500 Meters Deep Underground Water Exploration Locator

Model

PQWT-TC500

Measuring Depth

3500 meter

Measurement Range

0mV-2000mV, automatic range conversion

Measurement Accuracy

 0.001mV

Measurement Channel

6

Measuring Frequency

 Single, triple and 40 frequency

Optional Language

Chinese, English, French, Arabic

A/D Conversion

12-bit 1Msps

Input Impedance

 ≧10MΩ

Power Supply

 DC12V4000mAh Built-in Battery

Power Consumption

 About 4W

Working Temperature

 -10℃~50℃

RH

 ≦85%

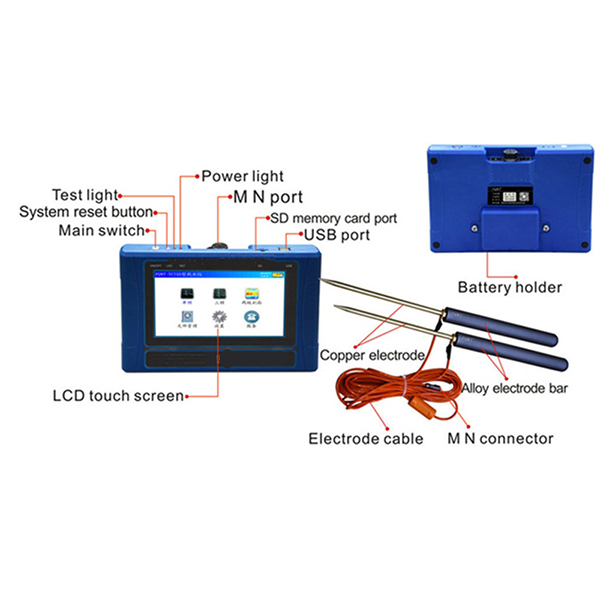

Pictures of PQWT-TC500 500 Meters Deep Underground Water Exploration Locator
