PQWT-100S 100 Meters Handheld Underground Water Detector

PQWT-100S 100 Meters Handheld Underground Water Detector is uses the electromagnetic field as a field source, the underground rock resistivity difference

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of PQWT-100S 100 Meters Handheld Underground Water Detector

PQWT-300S 300m Underground Water Detection Equipment is the use of natural earth field source without going through artificial field that is omitted clumsy power supply system in order to achieve the simple, lightweight. After data collection, instrument through the unique built-in computing functions to achieve the automatic presentation graph, the collected data can also be transferred to a computer drawing to form a cross-sectional view, the geological layer structure can be quickly determined by a clear understanding of cross-sectional view water ( aquifer ) specific information.

Parameter of PQWT-100S 100 Meters Handheld Underground Water Detector

Model

PQWT-100S

Measuring Depth

100 meters

Measurement Range

 0.1mV-255mV, range automatically converted by PQWT-200S

Measurement Accuracy

 0.1mV

Measuring Frequency

 profile

A/D Conversion

16-bit 1MsPs

Input Impedance

 ≧10MΩ

Power Supply

 DC7.2V 300mAh Rechargeable Battery

Working Temperature

 -20℃~70℃

RH

 ≦85%

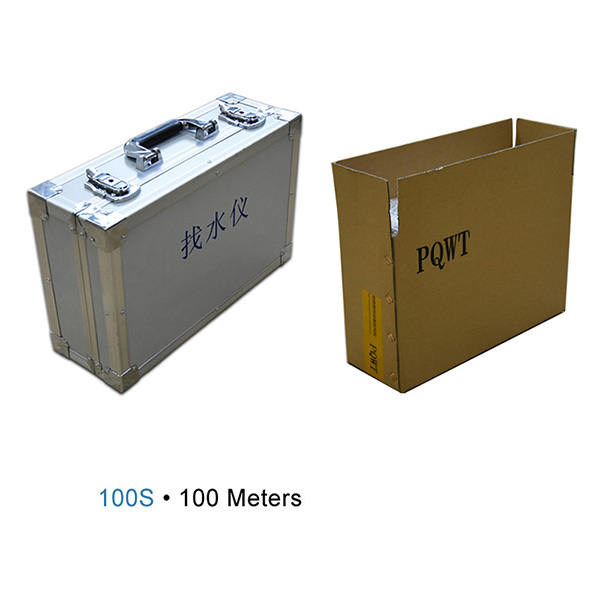

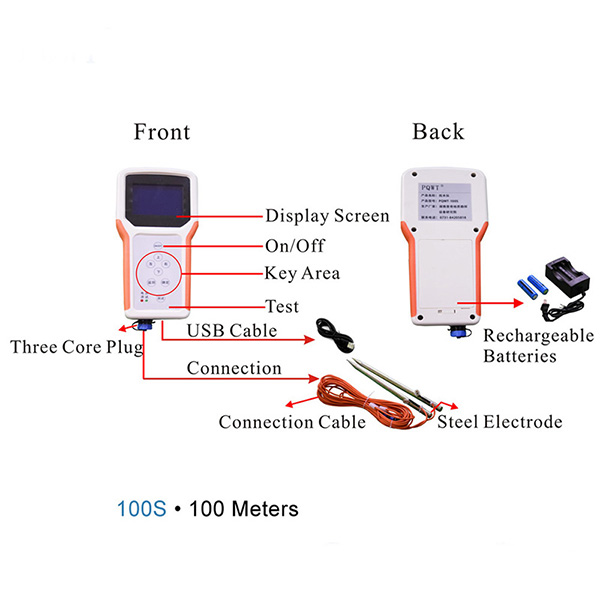

Pictures of PQWT-100S 100 Meters Handheld Underground Water Detector
