Sewer Pipe Inspection Pipe Crawler Camera Mainly used for a variety of pipeline TV detection (CCTV detection), without the need for personnel, can be on the pipeline of functional and structural defects to accurately detect. Using data processing software to interpret and analyze the collected data, to generate standard test report, and then to provide reliable basis for pipeline inspection, maintenance, evaluation and so on.

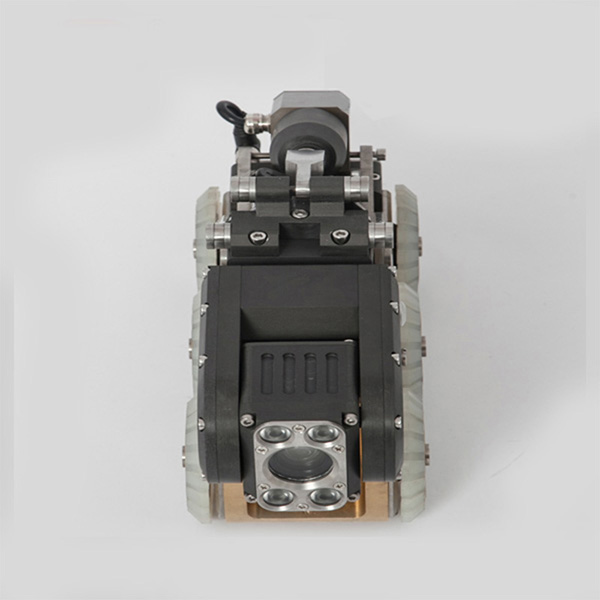

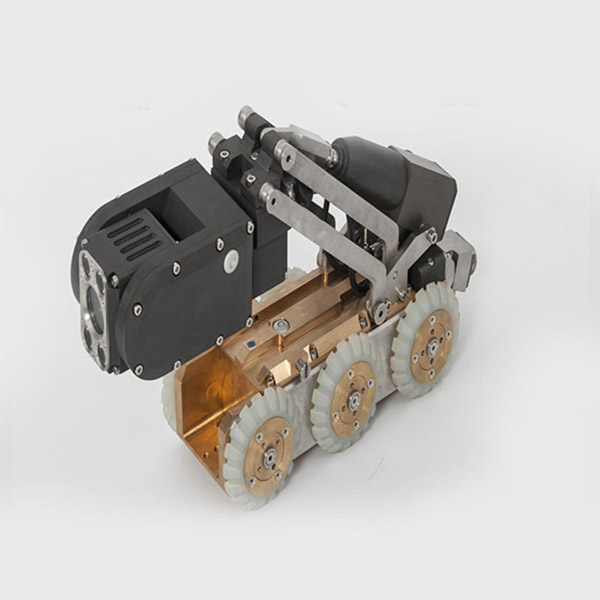

1.Spider equipment
|
model |
JD60 |
||||||||||||||
|
Applicable pipe diameter |
150mm-600mm |
||||||||||||||
|
Driving mode |
6 wheel drive (Motor Power 40W) |
||||||||||||||
|
Lifting frame |
Electric |
||||||||||||||
|
size |
352mm×124mm×94mm |
||||||||||||||
|
weight |
12kg |
||||||||||||||
|
Protection level |
IP68 |
||||||||||||||
|
working temperature |
-10°C~50°C |
||||||||||||||
|
Wheel
|
|||||||||||||||
|
Extension shaft |
|||||||||||||||
|
length |
38mm |
100mm |
|||||||||||||
|
number |
4piece |
4 piece |
|||||||||||||
|
major function |
|||||||||||||||
|
travel |
Forward, backward, steering, speed adjustable |
||||||||||||||
|
Climbing ability |
>=30degree |
||||||||||||||
|
Lift |
Electric control camera lift height |
||||||||||||||
|
Reverse protection |
Configure a reversing switch, a rearview camera, prevent the cable in the wheel |
||||||||||||||
|
slope measurement |
Can measure the internal slope gradient, draw the slope curve |
||||||||||||||
|
Rollover alarm |
In a rollover risk alarm |
||||||||||||||
|
Positive pressure protection |
Internal nitrogen gas, pressure 1.5Bar |
||||||||||||||
2.controller
|
model |
KZ103 |
|
|
technical parameter |
||
|
Power supply |
AC220±10%V |
|
|
monitor |
12.1 inch LCD screen, highlight industry |
|
|
keyboard |
Wireless touch panel keyboard |
|
|
storage |
120G |
|
|
Interface |
USB Interface |
|
|
weight |
8.4kg |
|
|
working temperature |
-10°C~50°C |
|
|
major function |
||
|
Video recording |
Can video, take pictures, add engineering information, pipeline information, text input and superimposed to the image; |
|
|
information display |
Travel distance, travel speed, slope, dip angle, camera lifting height, internal pressure |
|
|
Alarm indication |
Reverse protection instructions, pressure indicator, rollover risk indicator |
|
|
control function |
To control the crawler forward, backward, steering, speed; lighting brightness adjustment; lift, drop, stop; camera's axial, radial rotation, back position; camera focal length, focus adjustment |
|
|
Protection function |
System short circuit protection |
|
3.Camera
|
model |
ST104 |
|
Lens type |
Main camera |
|
Photosensitive chip |
1/4”CCD,colour |
|
pixel |
44 ten thousand |
|
Maximum visual angle |
51.5° |
|
Zoom |
10 times as much as 10 times the number of optical |
|
focusing |
Manual / automatic |
|
rotate |
Axial 360°radial 220° |
|
lighting |
built-in:3W LED×4 |
|
Laser scale |
- |
|
weight |
2.5kg |
|
Protection level |
IP68 |
|
working temperature |
-10°C~50°C |
4.Cable tray
|
model |
DL103 |
|
Cable |
Standard 100m |
|
Range counter accuracy |
1%±0.5m |
|
traverse method |
automatic |
|
Retractable line |
Manual |
|
weight |
15kg |
