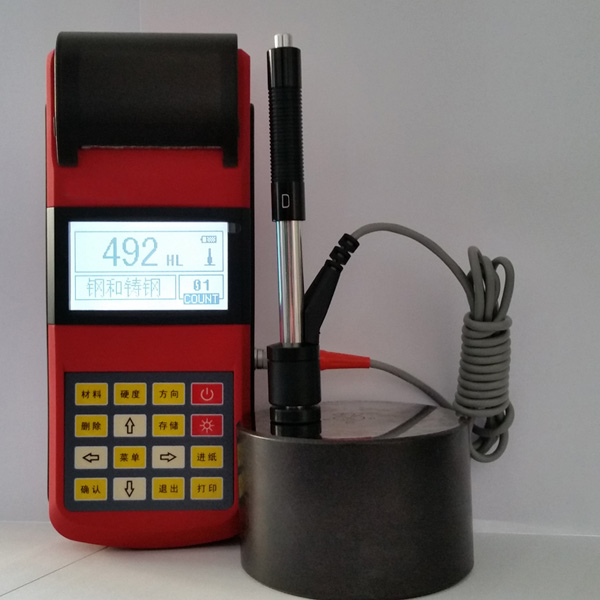

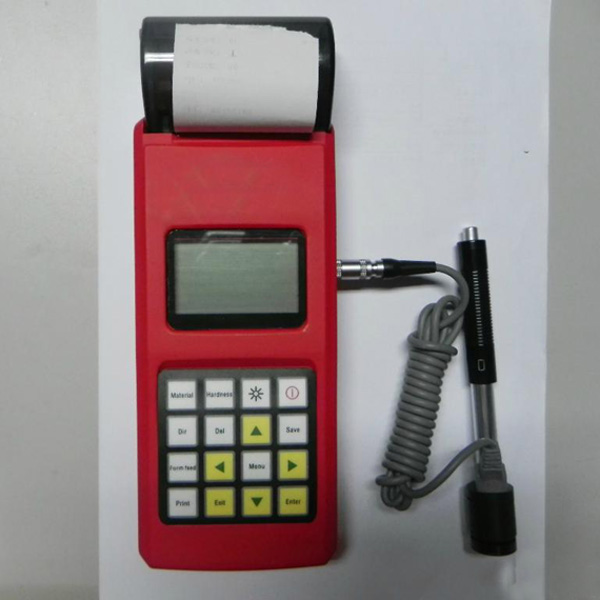

Mobile Ultrasonic Dynamic Hardness Tester, also called hardness gauge, hardness checker, is a portable hardness measuring device.
We are leading hardness testing machine manufacturers in China we can provide you various models of hardness measuring instrument. Any requirements please let us known.
Mobile Ultrasonic Dynamic Hardness Tester has high accuracy, small size, easy to operate, and a wide range of measurement, especially for large, heavy-duty malleable pieces, example: roll turbine shaft, and applied to the components already installed and can not be demolished, for example, : site hardness testing of pressure vessels, turbine units and other equipment.
Mobile Ultrasonic Dynamic Hardness Tester is widely used in petrochemical, aerospace, electric power, gas, automotive, shipbuilding, railways, machinery manufacturing and other industries.
|
Part No. |
HL-600 |
|
Hardness Scale |
Richter(HL), Brinell (HB), Rockwell B / C (HRB / C), Rockwell A (HRA), the Victoria's (HV), Shaw (HS) |
|
Measuring Range |
(170-960) HLD, (17.9-69.5) HRC, (19-651) HB, (80-1042) HV (30.6-102.6) HS |
|
Measuring Direction |
Universal 360 degree |
|
Display |
Dot matrix LCD, 128* 64 graphic dot, with backlight |
|
Memory |
500 groups data can be stored and re-readable |
|
Paper width |
(57.5 ± 0.5) mm |
|
Print Roll Diameter |
30mm |
|
Operating voltage |
6V NiMH battery pack |
|
Charging power supply |
9V/500mA |
|
Charging time |
2.5 to 3.5 hours |
|
Continuous working |
about 150 hours |
|
Operating temperature |
-10 ~ +50 °C |
|
Storage Temperature |
-30 °C ~ +60 °C |
|
Relative Humidity |
≤ 90% |
