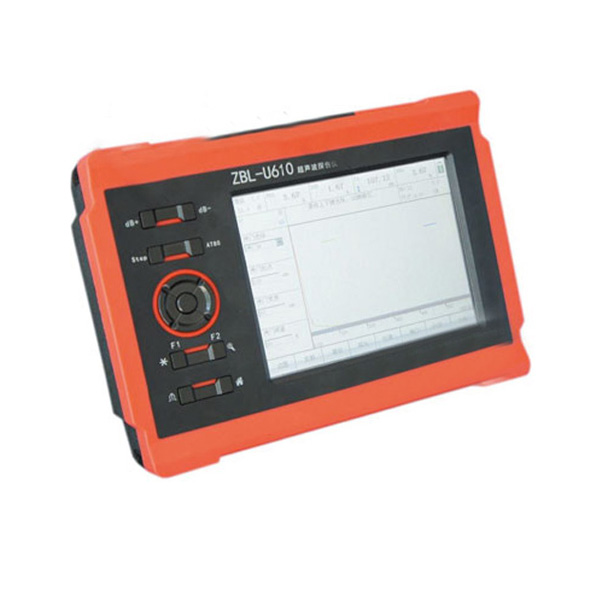

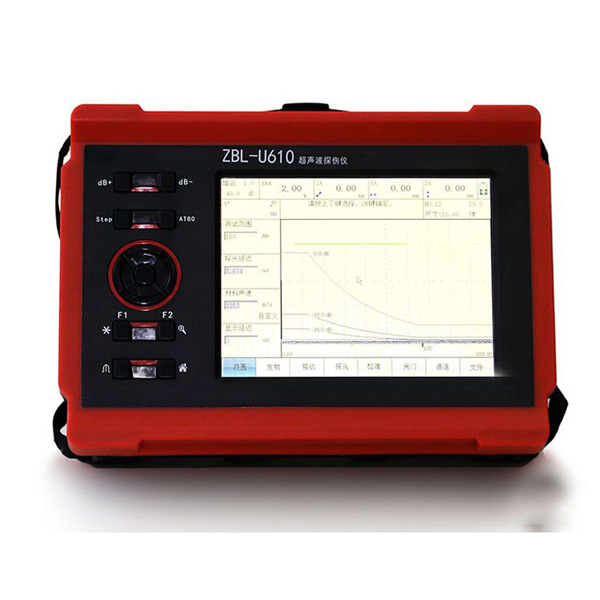

ZBL U610 Digital Non Destructive Ultrasonic Flaw Detector

ZBL U610 Digital Non Destructive Ultrasonic Flaw Detector is a portable industrial harmless flaw detector. As for the interior various flaws (crack, shrinkage, stoma and inclusions), the ultrasonic fl

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of ZBL U610 Digital Non Destructive Ultrasonic Flaw Detector

ZBL U610 Digital Non Destructive Ultrasonic Flaw Detector is a portable industrial harmless flaw detector. As for the interior various flaws (crack, shrinkage, stoma and inclusions), the ultrasonic flaw detector can do rapid inspection, convenient location, harmless evaluation and accurate diagnosis. And it also can inspect interior flaws and weld quality of various materials (like steel, copper, aluminum, commented carbide, casting, organic glass and composite). Apart from that, it can inspect flaws, such as stoma, crack, shrinkage, inclusions, and incomplete penetration.

Application of ZBL U610 Digital Non Destructive Ultrasonic Flaw Detector

ZBL U610 Digital Non Destructive Ultrasonic Flaw Detector is applied to the industries, including boiler, pressure vessel, aerospace, electric power, petroleum, chemistry, offshore oil, pipeline, war industry, shipbuilding, automobile, machine manufacturing, metallurgy, metal processing industry, steel structure, railway traffic, nuclear energy and colleges and universities.

Feature of ZBL U610 Digital Non Destructive Ultrasonic Flaw Detector

Color liquid crystal display with high resolution, the real time measurement system of echo dynamic;

Simple button, and the combination of touch screen and button provides more convenient one handed operation pattern for users; The operation of USB is available. The real time data backup and recovery; the operators do not need to be afraid of deleting their data; instead they will be carried with you;

With its function of real-time screen alarm and analog output. Its two independent measuring gates are applied to dealing with wider ranges;

The optional frequency range from 400 kHz to 20MHz matches probe to reach the optimum performance;

With function of flexible configurable measuring result. The needed important measuring information is chosen by the operator; Various choices of color profile are provided for operators to display topics and controlling brightness, adapting operating requirement in different environment; Guided probe calibration and curve making make easy calibration; Being able to store infinite multi group DAC/AVG curves without trouble of channel number; the curve can callout, introduce and derive backup;

Apart from offering two basic evaluation patterns, DAC,AVG(DGS), it provides up to nine kinds of evaluative criteria usually seen at home and broad. Besides, the corresponding standard test block and inspection level ar set inside to ensure the safe calibration;

AT80’s adjusting function of auto-gain with one click can adjust gain automatically to set echo-peak at the 80% of full screen, quickly up to users’ requirements;

The envelope function of peak can clearly reflect the location where the highest echo (flaw) occurs during the scanning;

With the function of continuously storing A scanning image (that is kinescope recording) and real-time playback. It can continuously record test procedure for up to five hours;


Parameter of ZBL U610 Digital Non Destructive Ultrasonic Flaw Detector

Power

AC: 220V±10%, DC: +9V

Working time

>5hrs

Total weight

1.25kg (include inside lithium-ion battery)

Total volume

210mm(length)´149mm(width)´60mm(thickness)

Display

5.7 inch, high brightness and true color liquid crystal display

Storage

Micro SD (TF) card, standard configuration is more than or equivalent to 4GB

Operating system

Windows CE

Operating mode

Touch screen + button

Working mode

Single, double and transmission

Measuring mode

Pulse front inside gate, peak

Detection mode

Positive half wave, negative half wave, full wave and RF wave

Transmitting voltage

Highest(360V) or lowest(110V)

Transmitting frequency

Manual, high automatic, medium automatic and low automatic

Gain range

From 0dB to 110dB

Detection range

20000mm

Sound velocity
of material


  • From 200 to16000m/s. Continuously adjustable. Seven common material’s sound velocity values.


Waveform inhibition

From 0 %to 80%

Filter

1M, 2M, 4M, 5M, 10M,13M and 15M broadband

Vertical linearity error

Be less than or equivalent to 2.5%

Horizontal linearity error

Be less than 0,03%

Surplus sensitivity

More than dB(200Φ2 flat-bottomed hole)

Resolution

55dB

Dynamic range

54dB
