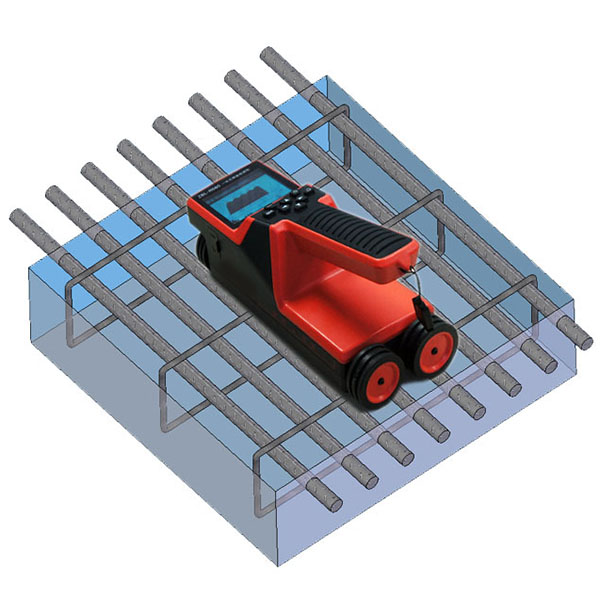

Brief Introduction To The Function Of Rebar Detector

It can be used to detect the construction quality of existing reinforced concrete projects and newly-built reinforced concrete structures: determine the location and reinforcement of the reinforcement, detect the thickness of the concrete protective layer according to the known diameter, and have the function of scanning reinforcement In addition, the position of the magnetic body and the conductive body in the non-magnetic and non-conductive medium can also be detected, such as cables in the wall, plumbing pipes, etc. The rebar detector is an intelligent nondestructive testing equipment with automatic testing, data storage and output functions. The product conforms to the "Code for Construction Quality Acceptance of Concrete Structure Engineering" GB 50204-2002, which requires the steel bar protective layer tester.

The main function of rebar detector

1. Detect the thickness of the concrete protective layer, the location of the reinforcement, and estimate the diameter of the reinforcement.

2. It has a test function specifically for dense reinforcement, which can analyze the distribution of reinforcement in dense areas.

3. Grid measurement can be carried out, continuous scanning in two directions, showing the distribution diagram of reinforcement grid.

4. Equipped with a detection trolley, which can automatically measure the spacing of steel bars. The reinforcement position is displayed in a grid layer.

5. Profile measurement can be carried out, continuous scanning in one direction, showing the distribution of steel bars in the profile.
